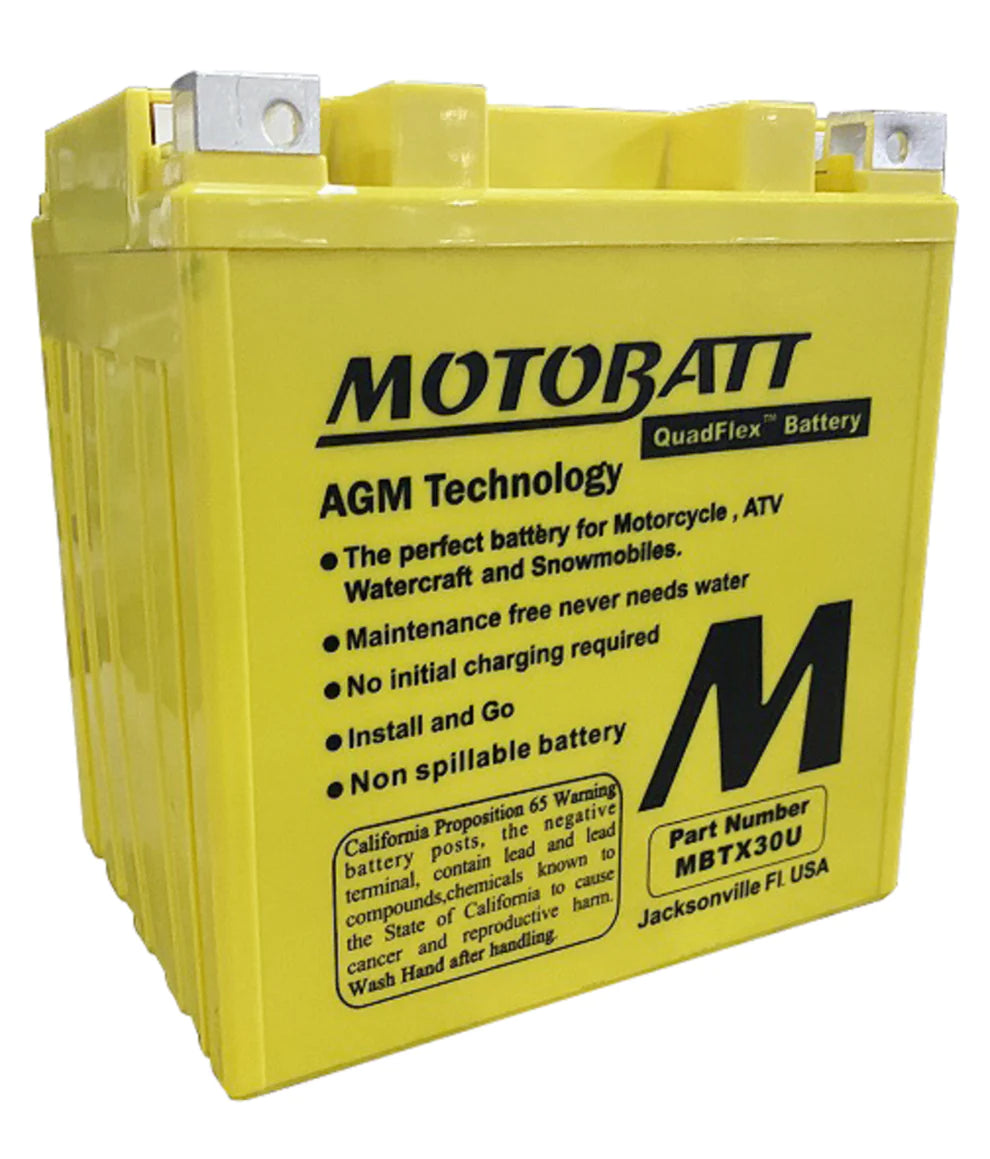

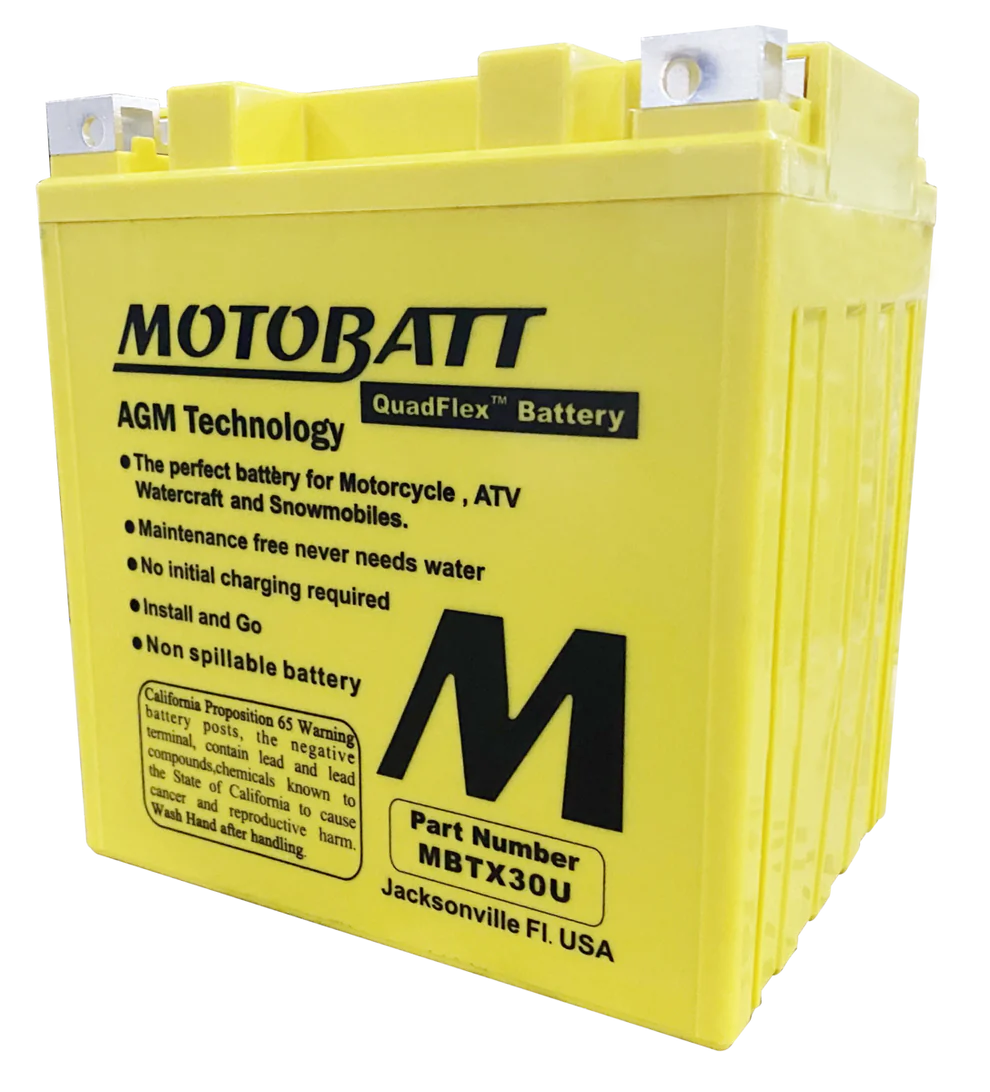

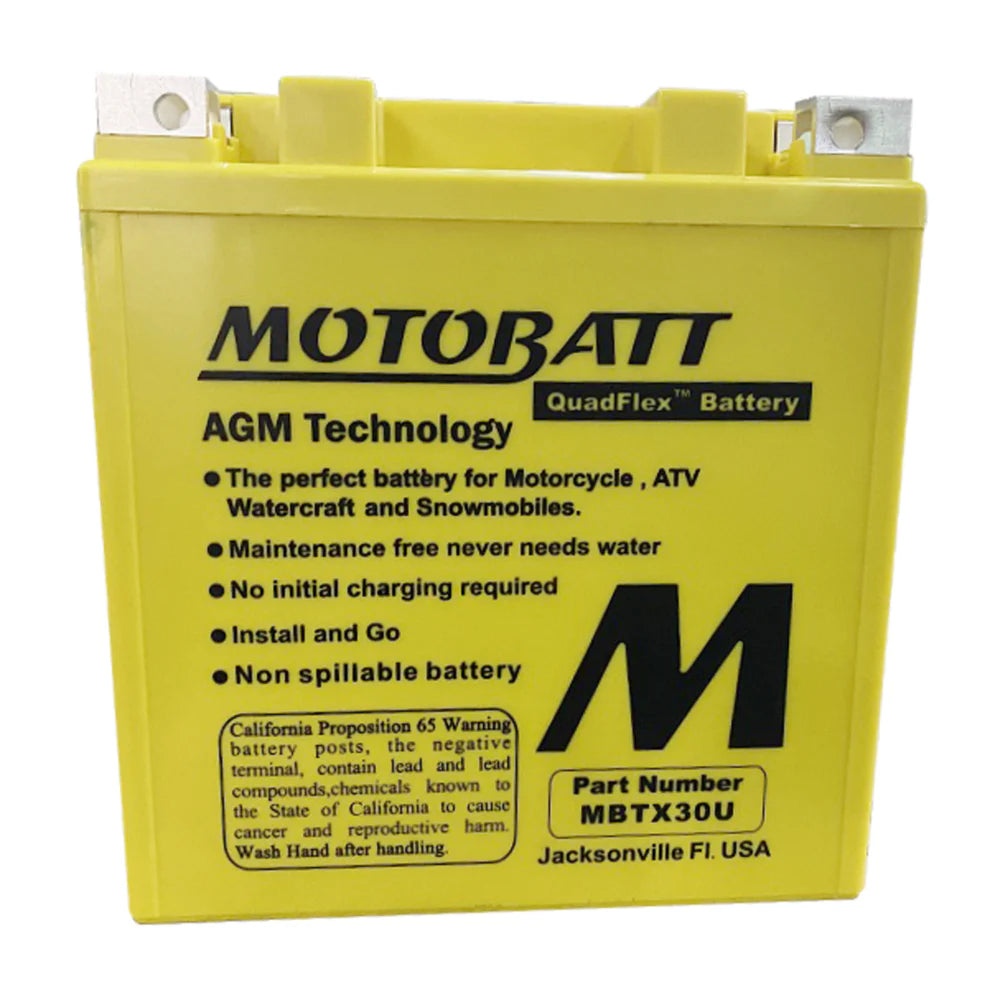

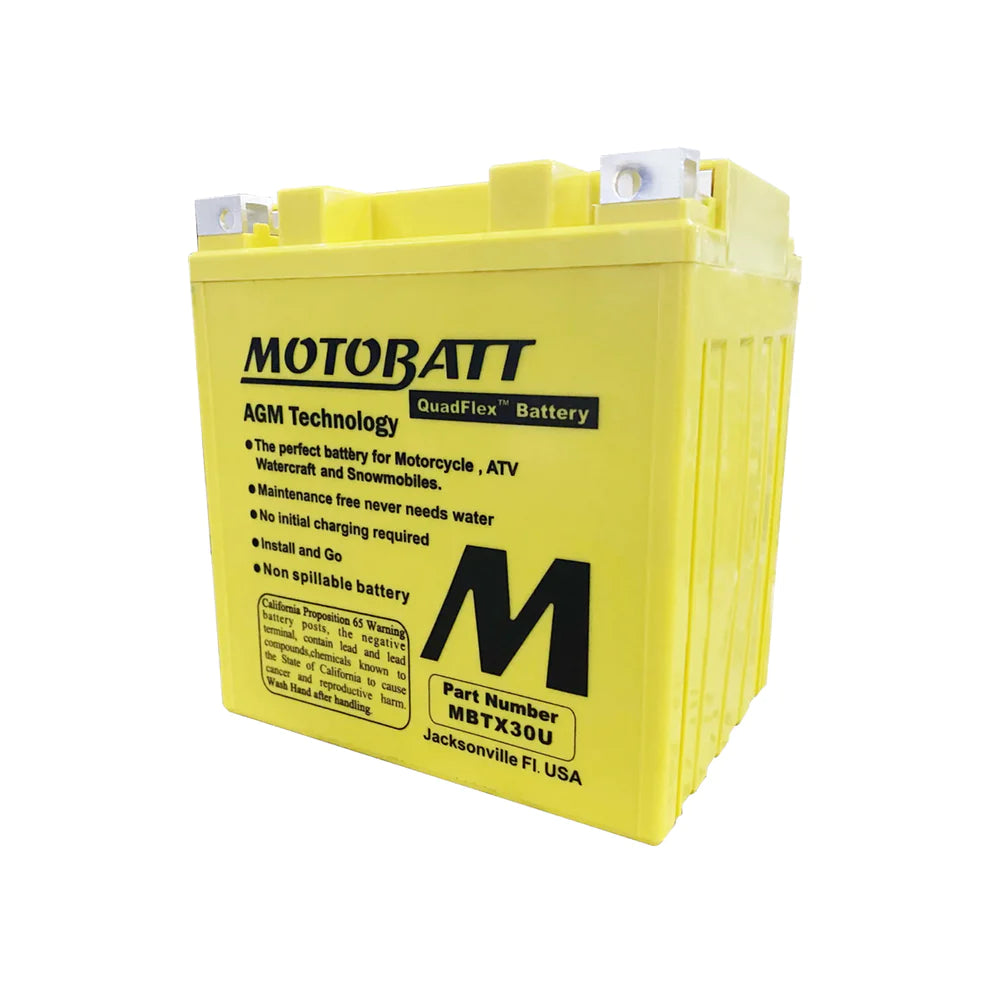

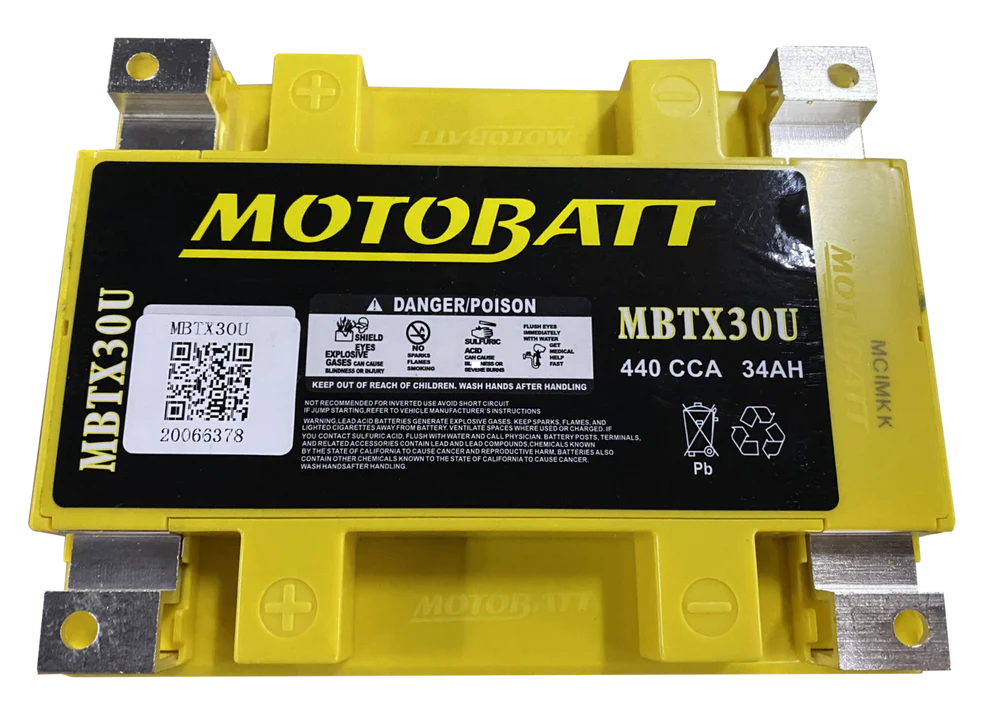

MBTX30U Motobatt Motorcycle Battery

The Motobatt Quadflex MBTX30U battery is a 12-volt powersport battery designed to provide a balanced combination of Cold Cranking Amps (CCA) and Amp Hour capacity. It is known for its unique 4-terminal system and innovative design that maximizes the dimensions of the plates internally, resulting in improved performance and durability. Here are the key specifications and features of this battery:

Specifications:

• Battery Type: MBTX30U
• Voltage: 12V
• CCA @ -18°C: 450
• MCA: 513A
• PHCA: 705A
• Capacity (10HR): 33Ah, C20 36Ah
• Weight: 10.2 kg (22.95 lbs)
• Dimensions (in / mm):
  • Length: 6.54 (166)
  • Width: 4.96 (126)
  • Height: 6.89 (175)
  • Terminal Height: 7.56 (192)
• Assembly Figure Terminal Locations: 4
• Terminals: 2 Black, 2 Red (PART MPC3)
• Screws: 2x Screws M6x12 (PART MPS4)
• Terminal Caps: 2 Black, 2 Red (PART MPC3)
• Spacer: 17mm Bottom (Part#MPC2), 2 Square Top Corners (Part#MPSC)

Key Features:

• 20% More Amp Hour Capacity: The MBTX30U battery offers 20% more Amp Hour capacity compared to traditional batteries, ensuring extended power supply.
• High CCA @ -18°C: With a high CCA rating, this battery provides reliable starting power, even in extremely cold conditions.
• Heavy-Duty Pure Lead Calcium Cast Grids: The battery is equipped with grids designed for high strength and durability.
• More Surface Area per Plate: Increased plate surface area contributes to enhanced battery performance and longevity.
• Military-Grade AGM Separators: Utilizes military-grade Absorbed Glass Mat (AGM) separators, making it highly resistant to vibrations.
• Multi-Terminal Design: The unique 4-terminal system simplifies installation and allows for easy accessory connection.
• Factory Activated: The battery comes pre-activated from the factory, eliminating the need to add acid. Simply check the charge, and it's ready to use.
• Extremely Low Self-Discharge Rate: The battery has a low self-discharge rate, allowing it to retain power when not in use.
• Replaces: The MBTX30U battery can replace various Yuasa battery models, including Y60N24A, Y60N24ALB, YIX30L, and others, as well as DEKA and ODYSSEY models.

This 12-volt battery is suitable for a wide range of powersport applications, including motorcycles, ATVs, and other vehicles where reliable starting power is essential. Its high CCA and Amp Hour capacity make it a versatile choice for various conditions and requirements, and the unique 4-terminal system simplifies installation.
